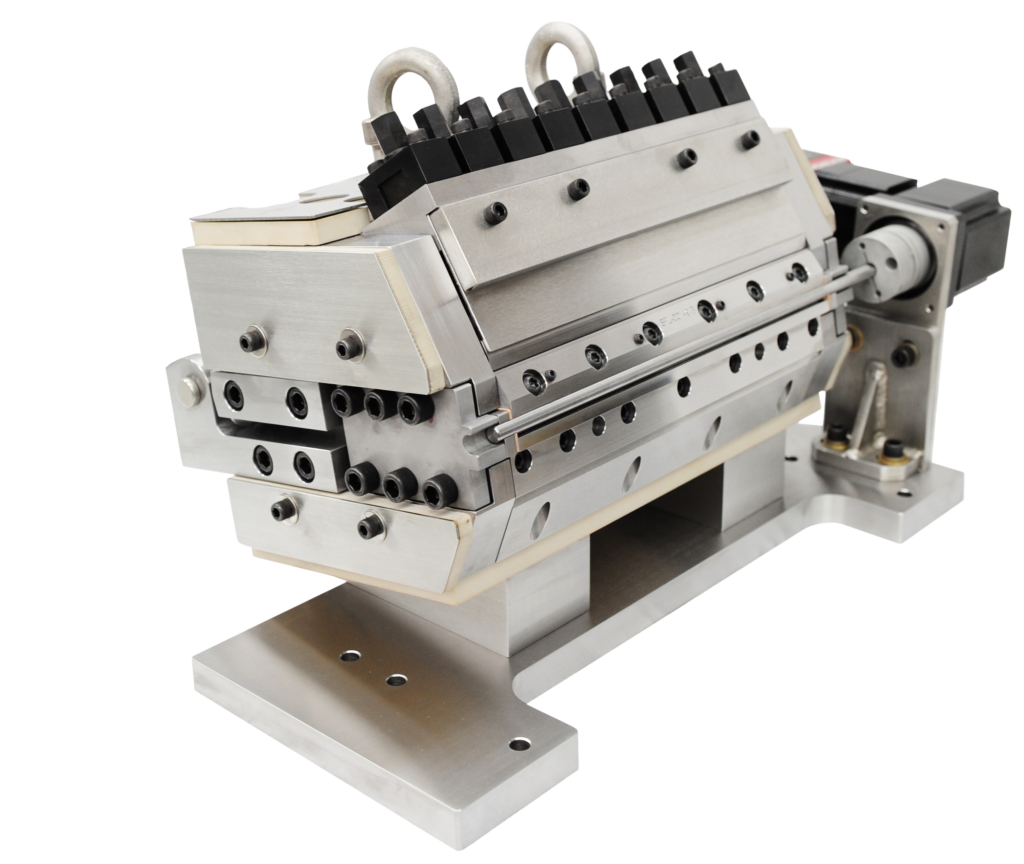

Slot Die Coating Systems for Tape & Label Converting

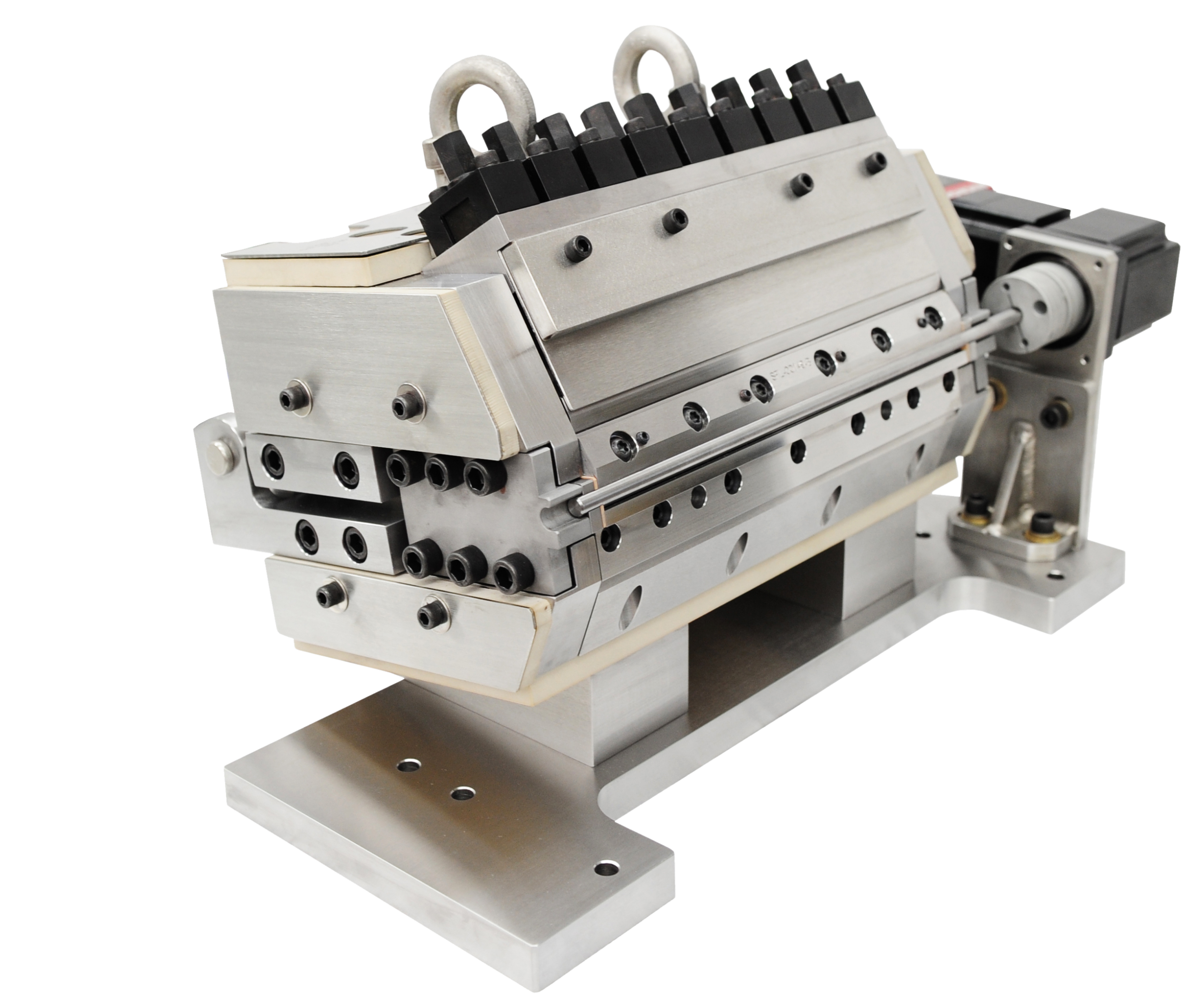

SLOT DIE COATING SYSTEMS

Precision Adhesive Application for Web Coating & Converting

Slot dies provide controlled, uniform application of hot melt adhesive across continuous web materials. Uniflow integrates slot die coating equipment with its hot melt drum unloaders and, where required, Acumeter processors to create complete adhesive delivery systems for Tape & Label, Web Coating, and Roll-to-Roll Converting applications.

For appropriate applications, Uniflow can supply hot melt directly to a slot die. At higher line speeds and flow rates, an Acumeter processor can provide additional temperature stability, precision metering, and supply buffering between the drum unloader and the coating head.

KEY BENEFITS

Uniform Coating Across the Web

Controlled adhesive distribution supports consistent film thickness across the coating width.

Precision Material Control

Slot die application supports repeatable coat weight and controlled adhesive delivery.

Reduced Adhesive Waste

Controlled application can help reduce excess material compared with less precise coating methods.

Continuous Production Support

Integrated hot melt supply helps support uninterrupted web coating and converting operations.

Flexible System Integration

Systems can be configured around Uniflow drum unloaders, Acumeter processors, and existing OEM coating lines.

Integrated Partner Components

Uniflow works with established slot die manufacturers to provide application equipment suited to the process.

How the System Works

1 — Bulk Hot Melt Supply
Uniflow drum unloaders recover, melt, and transfer hot melt adhesive from 55-gallon drums, providing the upstream material supply for the coating process.
2 — Processing & Buffering — When Required

For higher-speed or higher-flow applications, an Acumeter processor can provide added temperature stability, precision metering, and supply buffering before the adhesive reaches the coating head.

3 — Slot Die Application

The slot die applies a controlled, uniform film of hot melt adhesive onto the moving web, supporting repeatable coat weight and consistent coverage.

System Capabilities

Uniflow drum unloaders recover, melt, and transfer hot melt adhesive to the coating system, creating a continuous supply path from the drum to the application point.

For suitable applications below 270 kg/hr (600 lbs/hr), Uniflow systems can feed a slot die directly without an intermediate processing stage.

At higher line speeds and flow rates, an Acumeter processor can provide additional supply buffering, temperature stability, and controlled metering before the adhesive reaches the slot die.

Uniflow can integrate partner-supported fixed-lip and rotary slot die configurations to match different coating and web-handling requirements.

Slot die equipment can be incorporated into existing OEM coating and converting lines as part of a coordinated hot melt delivery and application system.

PARTNER-SUPPORTED SLOT DIE SOLUTIONS

Uniflow works with established slot die manufacturers, including Coating Tech and Precision Die Systems, to integrate best-in-breed coating equipment with complete hot melt delivery systems.

Precision Die Systems Slot Dies
Integrated slot die equipment for web coating and converting applications, suitable for incorporation into complete hot melt delivery systems.

Coating Tech Slot Dies
Fixed-lip and rotary slot die options for controlled, uniform coating across continuous web materials and a range of converting applications.

Complete System Integration
Uniflow can combine drum unloading, hot melt processing, metering, and partner-supported slot die equipment into a coordinated coating solution.

TARGET APPLICATIONS

Slot die coating systems support web coating and roll-to-roll converting applications where controlled adhesive delivery, uniform coverage, and repeatable coat weight are critical.

Tape & Label Converting

Pressure-Sensitive Adhesive Coating

Films, Papers, Foams, & Specialty Laminates

Roofing Membranes & Insulation Facings

Medical Tapes & Dressings

Battery Films & Separator Materials

Flexible Electronics & Functional Coatings

SYSTEM INTEGRATION & CONSIDERATIONS

Area Description
Primary Role Controlled application of hot melt adhesive onto continuous web materials
Upstream Supply Integrates with Uniflow drum unloaders for bulk hot melt delivery
Lower-Flow Applications Uniflow systems can feed slot dies directly at flow rates under 600 lbs/hr (~272 kg/hr)
Higher-Flow Applications Acumeter processing can provide additional buffering, metering, and temperature stability
Slot Die Options Fixed-lip, rotary, and other application-specific configurations
Line Integration Designed for integration with existing OEM web coating and converting equipment

RELATED SYSTEMS

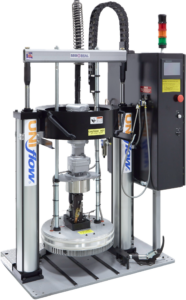

Uniflow Model 4230

Uniflow 4230 Hot Melt Drum UnloaderBulk hot melt supply for demanding adhesive applications and direct slot die feed in suitable lower-flow configurations.

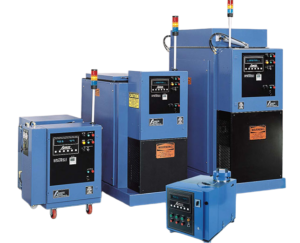

Acumeter Hot Melt Processors

Acumeter Adhesive Metling SystemsAdds temperature stability, metering, and supply buffering for higher-speed or higher-flow coating lines.

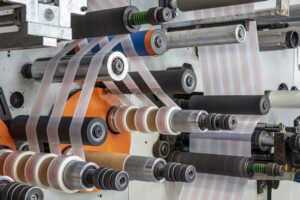

Tape & Label Applications

UNIFLOW in the Tape & Label IndustryExplore Uniflow solutions for pressure-sensitive adhesive coating, web converting, and related production processes.

DISCOVER THE UNIFLOW ADVANTAGE

Integrate Slot Die Coating Into Your Hot Melt Process

Uniflow can help integrate bulk adhesive handling, hot melt processing, precision metering, and slot die application into a coordinated web coating or converting solution.

Contact Uniflow to discuss line speed, flow requirements, coating width, adhesive characteristics, and existing equipment.
